Sizers

• Smart Staking

A Strategy offers methods to trade, namely: buy, sell and close. Let’s see the signature of buy:

def buy(self, data=None,
        size=None, price=None, plimit=None,
        exectype=None, valid=None, tradeid=0, **kwargs):

Notice that size has a default value of None if the caller does not specify it. This is where Sizers play an important role:

• size=None requests that the Strategy asks its Sizer for the actual stake

This obviously implies that Strategies have a Sizer: Yes, indeed!. The background machinery adds a default sizer to a Strategy if the user has not added one. The default Sizer added to a strategy is SizerFix. The initial lines of the definition:

class SizerFix(SizerBase):
    params = (('stake', 1),)

It is easy to guess that this Sizer simply buys/sells using a stake of 1 units (be it shares, contracts, …)

Using Sizers

From Cerebro

Sizers can be added via Cerebro with 2 different methods:

• addsizer(sizercls, *args, **kwargs)

  Adds a Sizer that will be applied to any strategy added to cerebro. This is, so to to say, the default Sizer. Example:

  cerebro = bt.Cerebro()
  cerebro.addsizer(bt.sizers.SizerFix, stake=20)  # default sizer for strategies


• addsizer_byidx(idx, sizercls, *args, **kwargs)

  The Sizer will only be added to the Strategy referenced by idx

  This idx can be gotten as return value from addstrategy. As in:

  cerebro = bt.Cerebro()
  cerebro.addsizer(bt.sizers.SizerFix, stake=20)  # default sizer for strategies

  idx = cerebro.addstrategy(MyStrategy, myparam=myvalue)
  cerebro.addsizer_byidx(idx, bt.sizers.SizerFix, stake=5)

  cerebro.addstrategy(MyOtherStrategy)


  In this example:

  • A default Sizer has been added to the system. This one applies to all strategies which don’t have a specific Sizer assigned

  • For MyStrategy and after collecting its insertion idx, a specific sizer (changing the stake param) is added

  • A 2^nd strategy, MyOtherStrategy, is added to the system. No specific Sizer is added for it

  • This means that:

    • MyStrategy will finally have an internal specific Sizer

    • MyOtherStrategy will get the default sizer

Note

default doesn’t mean that that the strategies share a single Sizer instance. Each strategy receives a different instance of the default sizer

To share a single instance, the sizer to be shared should be a singleton class. How to define one is outside of the scope of backtrader

From Strategy

The Strategy class offers an API: setsizer and getsizer (and a property sizer) to manage the Sizer. The signatures:

• def setsizer(self, sizer): it takes an already instantiated Sizer

• def getsizer(self): returns the current Sizer instance

• sizer it is the property which can be directly get/set

In this scenario the Sizer can be for example:

• Passed to the strategy as a parameter

• Be set during __init__ using the property sizer or setsizer as in:

  class MyStrategy(bt.Strategy):
      params = (('sizer', None),)

      def __init__(self):
          if self.p.sizer is not None:
              self.sizer = self.p.sizer


  This would for example allow to create a Sizer at the same level as the cerebro calls are happening and pass it as a parameter to all strategies that go in the system, which effectevily allows sharing a Sizer

Sizer Development

Doing it is easy:

1. Subclass from backtrader.Sizer

   This gives you access to self.strategy and self.broker although it shouldn’t be needed in most cases. Things that can be accessed with the broker

   • data’s position with self.strategy.getposition(data)

   • complete portfolio value through self.broker.getvalue()

     Notice this could of course also be done with self.strategy.broker.getvalue()

   Some of the other things are already below as arguments

2. Override the method _getsizing(self, comminfo, cash, data, isbuy)

   • comminfo: The CommissionInfo instance that contains information about the commission for the data and allows calculation of position value, operation cost, commision for the operation

   • cash: current available cash in the broker

   • data: target of the operation

   • isbuy: will be True for buy operations and False for sell operations

   This method returns the desired size for the buy/sell operation

   The returned sign is not relevant, ie: if the operation is a sell operation (isbuy will be False) the method may return 5 or -5. Only the absolute value will be used by the sell operation.

   Sizer has already gone to the broker and requested the commission information for the given data, the actual cash level and provides a direct reference to the data which is the target of the operation

Let’s go for the definition of the FixedSize sizer:

import backtrader as bt

class FixedSize(bt.Sizer):
    params = (('stake', 1),)

    def _getsizing(self, comminfo, cash, data, isbuy):
        return self.params.stake

This is pretty simple in that the Sizer makes no calculations and the parameters are just there.

But the mechanism should allow the construction of complex sizing (aka positioning) systems to manage the stakes when entering/exiting the market.

Another example: A position rerverser:

class FixedRerverser(bt.FixedSize):

    def _getsizing(self, comminfo, cash, data, isbuy):
        position = self.broker.getposition(data)
        size = self.p.stake * (1 + (position.size != 0))
        return size

This one builds on the existing FixedSize to inherit the params and overrides _getsizing to:

• Get the position of the data via the attribute broker

• Use position.size to decide if to double the fixed stake

• Return the calculated value

This would remove the burden from the Strategy to decide if a position has to be reversed or opened, the Sizer is in control and can at any time be replaced without affecting the logic.

Practical Sizer Applicability

Wihtout considering complex sizing algorithms, two different sizers can be used to turn a strategy from Long-Only to Long-Short. Simply by changing the Sizer in the cerebro execution, the strategy will change behavior. A very simple close crosses SMA algorithm:

class CloseSMA(bt.Strategy):
    params = (('period', 15),)

    def __init__(self):
        sma = bt.indicators.SMA(self.data, period=self.p.period)
        self.crossover = bt.indicators.CrossOver(self.data, sma)

    def next(self):
        if self.crossover > 0:
            self.buy()

        elif self.crossover < 0:
            self.sell()

Notice how the strategy doesn’t consider the current position (by looking at self.position) to decide whether a buy or sell has to actually be done. Only the signal from the CrossOver is considered. The Sizers will be in charge of everything.

This sizer will take care of only returning a non-zero size when selling if a position is already open:

class LongOnly(bt.Sizer):
    params = (('stake', 1),)

    def _getsizing(self, comminfo, cash, data, isbuy):
      if isbuy:
          return self.p.stake

      # Sell situation
      position = self.broker.getposition(data)
      if not position.size:
          return 0  # do not sell if nothing is open

      return self.p.stake

Putting it all together (and assuming backtrader has already been imported and a data has been added to the system):

...
cerebro.addstrategy(CloseSMA)
cerebro.addsizer(LongOnly)
...
cerebro.run()
...

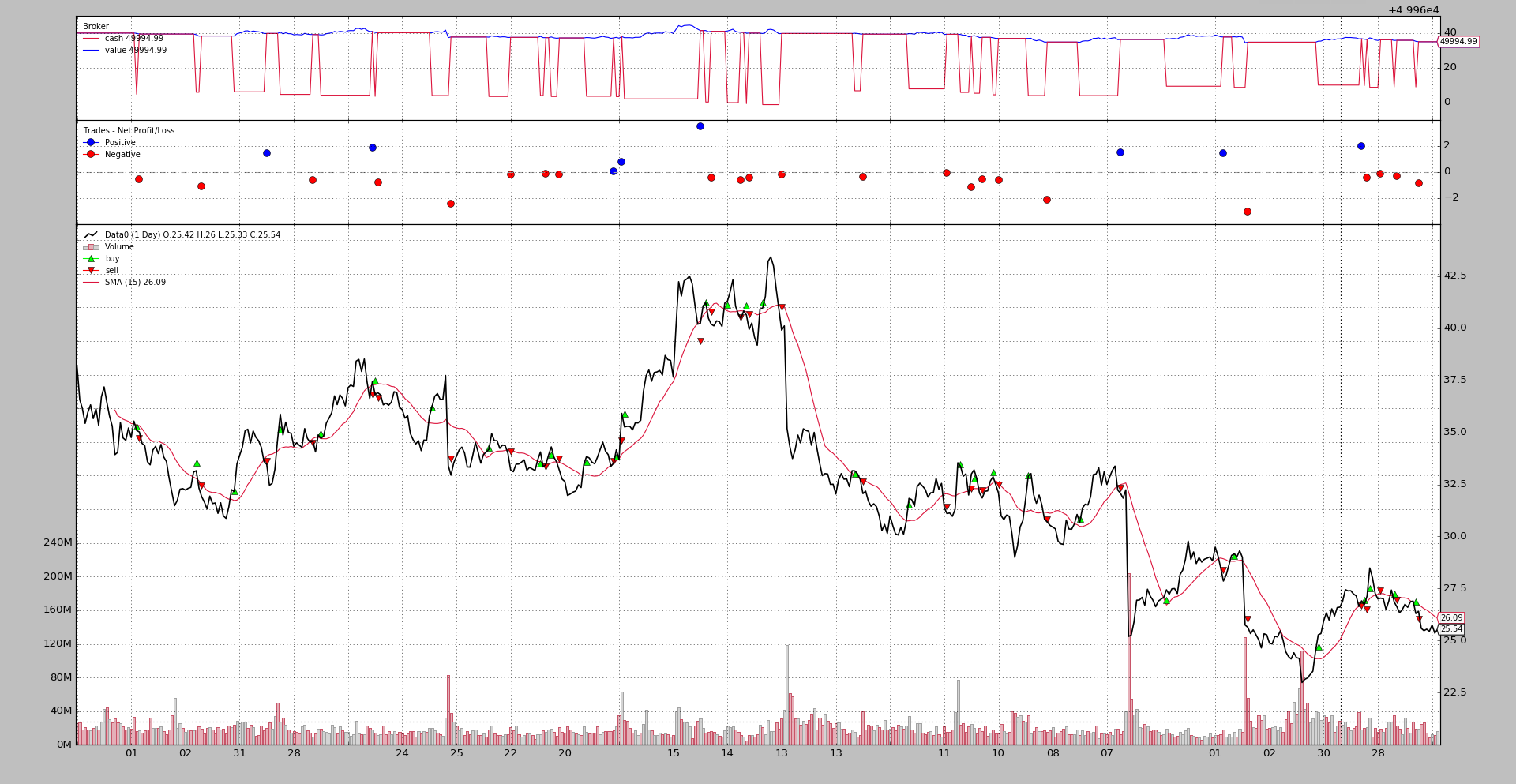

The chart (from the sample included in the sources to test this).

The Long-Short version simply changes the Sizer to be the FixedReverser shown above:

...
cerebro.addstrategy(CloseSMA)
cerebro.addsizer(FixedReverser)
...
cerebro.run()
...

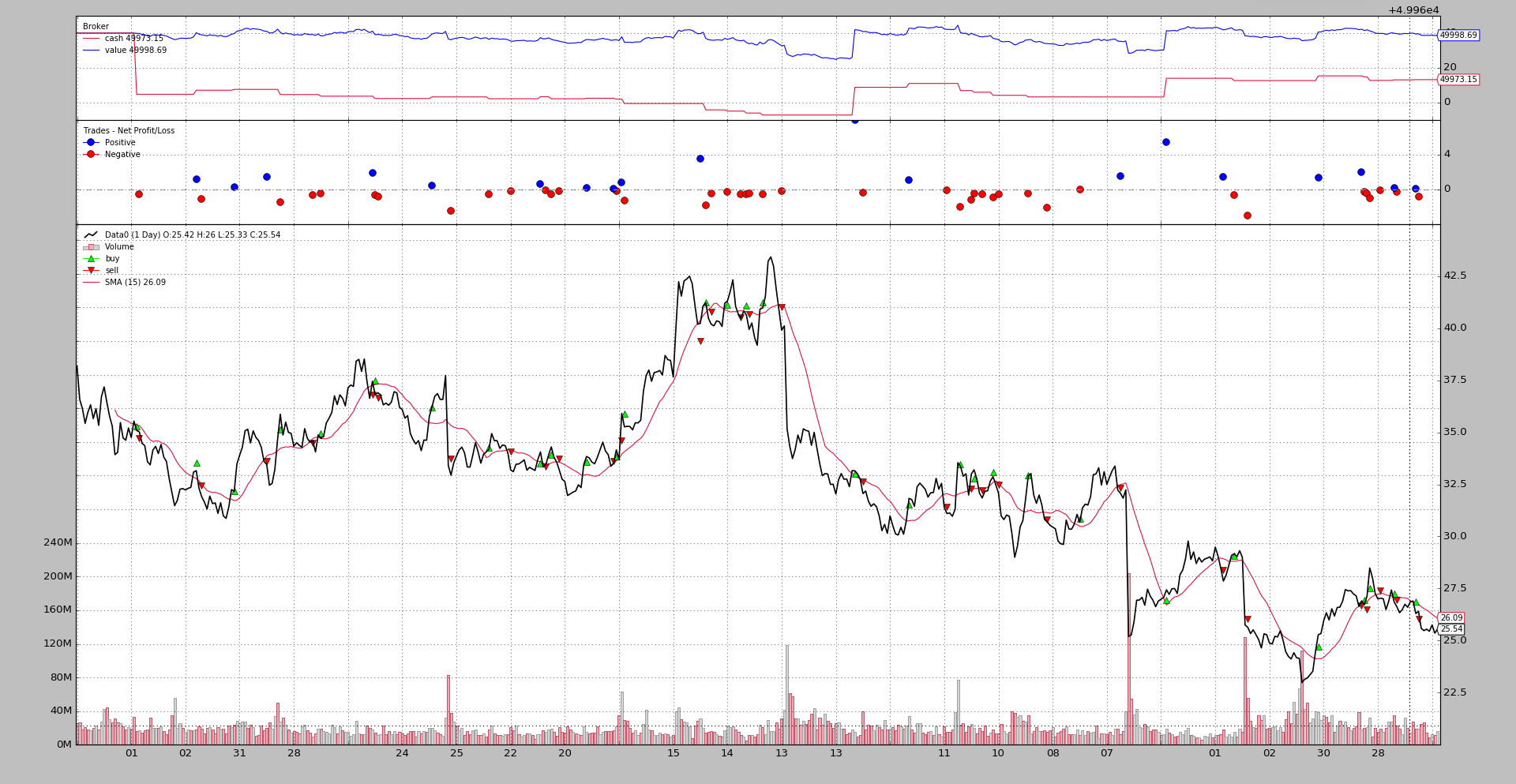

The output chart.

Notice the differences:

• The number of trades has duplicated

• The cash level never goes back to be the value because the strategy is always in the market

Both approaches are anyhow negative, but this is only an example.

bt.Sizer Reference

class backtrader.Sizer()

This is the base class for Sizers. Any sizer should subclass this and override the _getsizing method

Member Attribs:

• strategy: will be set by the strategy in which the sizer is working

  Gives access to the entire api of the strategy, for example if the actual data position would be needed in _getsizing:

  position = self.strategy.getposition(data)


• broker: will be set by the strategy in which the sizer is working

  Gives access to information some complex sizers may need like portfolio value, ..

_getsizing(comminfo, cash, data, isbuy)

This method has to be overriden by subclasses of Sizer to provide the sizing functionality

Params:

* `comminfo`: The CommissionInfo instance that contains
  information about the commission for the data and allows
  calculation of position value, operation cost, commision for the
  operation

* `cash`: current available cash in the *broker*

* `data`: target of the operation

* `isbuy`: will be `True` for *buy* operations and `False`
  for *sell* operations

The method has to return the actual size (an int) to be executed. If 0 is returned nothing will be executed.

The absolute value of the returned value will be used
