Observers and Statistics

Strateties running inside the backtrader do mostly deal with datas and indicators.

Datas are added to Cerebro instances and end up being part of the input of strategies (parsed and served as attributes of the instance) whereas Indicators are declared and managed by the Strategy itself.

All backtrader sample charts have so far had 3 things which seem to be taken for granted because they are not declared anywhere:

  • Cash and Value (what’s happening with the money in the broker)

  • Trades (aka Operations)

  • Buy/Sell Orders

They are Observers and exist within the submodule backtrader.observers. They are there because Cerebro supports a parameter to automatically add (or not) them to the Strategy:

  • stdstats (default: True)

If the default is respected Cerebro executes the following equivalent user code:

import backtrader as bt

...

cerebro = bt.Cerebro()  # default kwarg: stdstats=True

cerebro.addobserver(backtrader.observers.Broker)
cerebro.addobserver(backtrader.observers.Trades)
cerebro.addobserver(backtrader.observers.BuySell)

Let’s see the usual chart with those 3 default observers (even if no order is issued and therefore no trade happens and there is no change to the cash and portfolio value)

from __future__ import (absolute_import, division, print_function,
                        unicode_literals)

import backtrader as bt
import backtrader.feeds as btfeeds

if __name__ == '__main__':
    cerebro = bt.Cerebro(stdstats=False)
    cerebro.addstrategy(bt.Strategy)

    data = bt.feeds.BacktraderCSVData(dataname='../datas/2006-day-001.txt')
    cerebro.adddata(data)

    cerebro.run()
    cerebro.plot()

!image

Now let’s change the value of stdstats to False when creating the Cerebro instance (can also be done when invoking run):

cerebro = bt.Cerebro(stdstats=False)

The chart is different now.

!image

Accesing the Observers

The Observers as seen above are already there in the default case and collecting information which can be used for statistical purposes and that’s why acess to the observers can be done through an attribute of the strategy called:

  • stats

It is simply a placeholder. If we recall the addition of one of the default Observers as laid out above:

...
cerebro.addobserver(backtrader.observers.Broker)
...

The obvious question would be how to access the Broker observer. Here for example how it’s done from the next method of a strategy:

class MyStrategy(bt.Strategy):

    def next(self):

        if self.stats.broker.value[0] < 1000.0:
           print('WHITE FLAG ... I LOST TOO MUCH')
        elif self.stats.broker.value[0] > 10000000.0:
           print('TIME FOR THE VIRGIN ISLANDS ....!!!')

The Broker observer just like a Data, an Indicator and the Strategy itself is also a Lines objects. In this case the Broker has 2 lines:

  • cash

  • value

Observer Implementation

The implementation is very similar to that of an Indicator:

class Broker(Observer):
    alias = ('CashValue',)
    lines = ('cash', 'value')

    plotinfo = dict(plot=True, subplot=True)

    def next(self):
        self.lines.cash[0] = self._owner.broker.getcash()
        self.lines.value[0] = value = self._owner.broker.getvalue()

Steps:

  • Derive from Observer (and not from Indicator)

  • Declare lines and params as needed (Broker has 2 lines but no params)

  • There will be an automatic attribute _owner which is the strategy holding the observer

Observers come in action:

  • After all Indicators have been calculated

  • After the Strategy next method has been executed

  • That means: at the end of the cycle … they observe what has happened

In the Broker case it’s simply blindly recording the broker cash and portfolio values at each point in time.

Adding Observers to the Strategy

As already pointed out above, Cerebro is using the stdstats parameter to decide whether to add 3 default Observers, alleviating the work of the end user.

Adding other Observers to the mix is possible, be it along the stdstats or removing those.

Let’s go for the usual strategy which buys when the close price goes above a SimpleMovingAverage and sells if the opposite is true.

With one “addition”:

  • DrawDown which is an already existing observer in the backtrader ecosystem
from __future__ import (absolute_import, division, print_function,
                        unicode_literals)

import argparse
import datetime
import os.path
import time
import sys


import backtrader as bt
import backtrader.feeds as btfeeds
import backtrader.indicators as btind


class MyStrategy(bt.Strategy):
    params = (('smaperiod', 15),)

    def log(self, txt, dt=None):
        ''' Logging function fot this strategy'''
        dt = dt or self.data.datetime[0]
        if isinstance(dt, float):
            dt = bt.num2date(dt)
        print('%s, %s' % (dt.isoformat(), txt))

    def __init__(self):

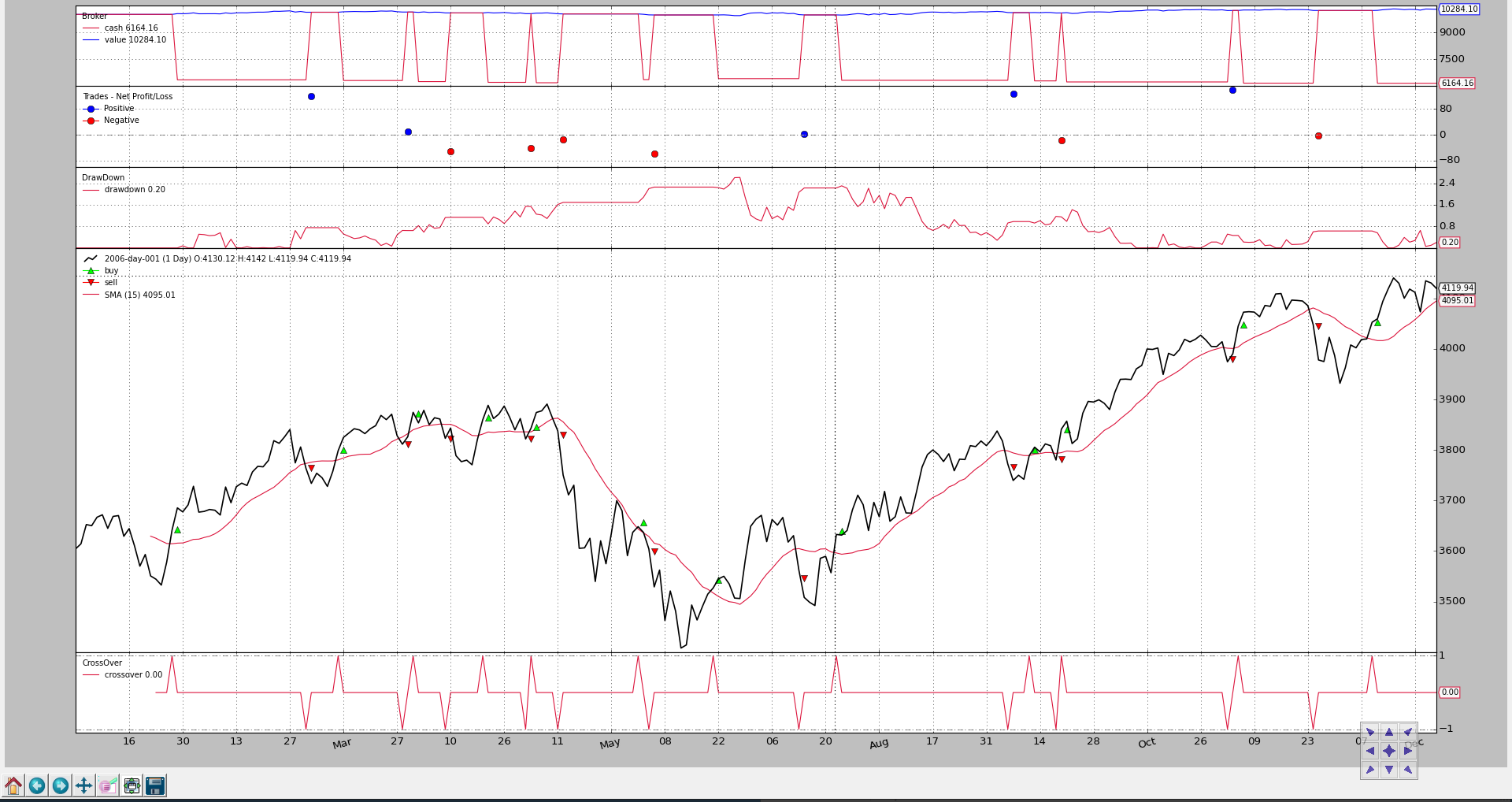

The visual output shows the evolution of the drawdown

!image

And part of the text output:

...
2006-12-14T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-15T23:59:59+00:00, DrawDown: 0.22
2006-12-15T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-18T23:59:59+00:00, DrawDown: 0.00
2006-12-18T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-19T23:59:59+00:00, DrawDown: 0.00
2006-12-19T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-20T23:59:59+00:00, DrawDown: 0.10
2006-12-20T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-21T23:59:59+00:00, DrawDown: 0.39
2006-12-21T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-22T23:59:59+00:00, DrawDown: 0.21
2006-12-22T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-27T23:59:59+00:00, DrawDown: 0.28
2006-12-27T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-28T23:59:59+00:00, DrawDown: 0.65
2006-12-28T23:59:59+00:00, MaxDrawDown: 2.62
2006-12-29T23:59:59+00:00, DrawDown: 0.06
2006-12-29T23:59:59+00:00, MaxDrawDown: 2.62

Note

As seen in the text output and in the code, the DrawDown observer has actually 2 lines:

  • drawdown

  • maxdrawdown

The choice is not to plot the maxdrawdown line, but make it is still available to the user.

Actually the last value of maxdrawdown is also available in a direct attribute (not a line) with the name of maxdd

Developing Observers

The implementation of the Broker observer was shown above. To produce a meaningful observer, the implementation can use the following information:

  • self._owner is the currently strategy being executed

    As such anything within the strategy is available to the observer

  • Default internal things available in the strategy which may be useful:

    • broker -> attribute giving access to the broker instance the strategy creates order against

    As seen in Broker, cash and portfolio values are collected by invoking the methods getcash and getvalue

    • _orderspending -> list orders created by the strategy and for which the broker has notified an event to the strategy.

    The BuySell observer traverses the list looking for orders which have executed (totally or partially) to create an average execution price for the given point in time (index 0)

    • _tradespending -> list of trades (a set of completed buy/sell or sell/buy pairs) which is compiled from the buy/sell orders

An Observer can obviously access other observers over the self._owner.stats path.

Custom OrderObserver

The standard BuySell observer does only care about operations which have executed. We can create an observer which shows when orders where created and if they expired.

For the sake of visibility the display will not be plotted along the price but on a separate axis.

from __future__ import (absolute_import, division, print_function,
                        unicode_literals)

import math

import backtrader as bt


class OrderObserver(bt.observer.Observer):
    lines = ('created', 'expired',)

    plotinfo = dict(plot=True, subplot=True, plotlinelabels=True)

    plotlines = dict(
        created=dict(marker='*', markersize=8.0, color='lime', fillstyle='full'),
        expired=dict(marker='s', markersize=8.0, color='red', fillstyle='full')
    )

    def next(self):
        for order in self._owner._orderspending:
            if order.data is not self.data:
                continue

            if not order.isbuy():
                continue

            # Only interested in "buy" orders, because the sell orders
            # in the strategy are Market orders and will be immediately
            # executed

            if order.status in [bt.Order.Accepted, bt.Order.Submitted]:
                self.lines.created[0] = order.created.price

            elif order.status in [bt.Order.Expired]:
                self.lines.expired[0] = order.created.price

The custom observer only cares about buy orders, because this is a stratey which only buys to try to make a profit. Sell orders are Market orders and will be executed immediately.

The Close-SMA CrossOver strategy is changed to:

  • Create a Limit order with a price below 1.0% the close price at the moment of the signal

  • A validity for the order of 7 (calendar) days

The resulting chart.

!image

Several orders have expired as can be seen in the new subchart (red squares) and we can also appreciate that between “creation” and “execution” several days happen to be.

Note

Starting with commit 1560fa8802 in the development branch if price is unset at the time of order creation, the closing price will be used as the reference price.

This has no impact in Market orders but keeps order.create.price usable at all times and eases up the usage of buy

Finally the code for this strategy which applies the new observer

from __future__ import (absolute_import, division, print_function,
                        unicode_literals)

import datetime

import backtrader as bt
import backtrader.feeds as btfeeds
import backtrader.indicators as btind

from orderobserver import OrderObserver


class MyStrategy(bt.Strategy):
    params = (
        ('smaperiod', 15),
        ('limitperc', 1.0),
        ('valid', 7),
    )

    def log(self, txt, dt=None):
        ''' Logging function fot this strategy'''
        dt = dt or self.data.datetime[0]
        if isinstance(dt, float):
            dt = bt.num2date(dt)
        print('%s, %s' % (dt.isoformat(), txt))

    def notify_order(self, order):
        if order.status in [order.Submitted, order.Accepted]:
            # Buy/Sell order submitted/accepted to/by broker - Nothing to do
            self.log('ORDER ACCEPTED/SUBMITTED', dt=order.created.dt)
            self.order = order
            return

        if order.status in [order.Expired]:
            self.log('BUY EXPIRED')

        elif order.status in [order.Completed]:
            if order.isbuy():
                self.log(
                    'BUY EXECUTED, Price: %.2f, Cost: %.2f, Comm %.2f' %
                    (order.executed.price,
                     order.executed.value,
                     order.executed.comm))

            else:  # Sell
                self.log('SELL EXECUTED, Price: %.2f, Cost: %.2f, Comm %.2f' %
                         (order.executed.price,
                          order.executed.value,
                          order.executed.comm))

        # Sentinel to None: new orders allowed
        self.order = None

    def __init__(self):
        # SimpleMovingAverage on main data
        # Equivalent to -> sma = btind.SMA(self.data, period=self.p.smaperiod)
        sma = btind.SMA(period=self.p.smaperiod)

        # CrossOver (1: up, -1: down) close / sma
        self.buysell = btind.CrossOver(self.data.close, sma, plot=True)

        # Sentinel to None: new ordersa allowed
        self.order = None

    def next(self):
        if self.order:
            # pending order ... do nothing
            return

        # Check if we are in the market
        if self.position:
            if self.buysell < 0:
                self.log('SELL CREATE, %.2f' % self.data.close[0])
                self.sell()

        elif self.buysell > 0:
            plimit = self.data.close[0] * (1.0 - self.p.limitperc / 100.0)
            valid = self.data.datetime.date(0) + \
                datetime.timedelta(days=self.p.valid)
            self.log('BUY CREATE, %.2f' % plimit)
            self.buy(exectype=bt.Order.Limit, price=plimit, valid=valid)


def runstrat():
    cerebro = bt.Cerebro()

    data = bt.feeds.BacktraderCSVData(dataname='../datas/2006-day-001.txt')
    cerebro.adddata(data)

    cerebro.addobserver(OrderObserver)

    cerebro.addstrategy(MyStrategy)
    cerebro.run()

    cerebro.plot()


if __name__ == '__main__':
    runstrat()

Saving/Keeping the statistics

As of now backtrader has not implemented any mechanism to track the values of observers storing them into files. The best way to do it:

  • Open a file in the start method of the strategy

  • Write the values down in the next method of the strategy

Considering the DrawDown observer, it could be done like this:

class MyStrategy(bt.Strategy):

    def start(self):

        self.mystats = open('mystats.csv', 'wb')
        self.mystats.write('datetime,drawdown, maxdrawdown\n')


    def next(self):
        self.mystats.write(self.data.datetime.date(0).strftime('%Y-%m-%d'))
        self.mystats.write(',%.2f' % self.stats.drawdown.drawdown[-1])
        self.mystats.write(',%.2f' % self.stats.drawdown.maxdrawdown-1])
        self.mystats.write('\n')

To save the values of index 0, once all observers have been processed a custom observer which writes to a file could be added as the last observer to the system to save values to a csv file.
